Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Modello n.: ZD-ppgi

Applicazione: PPGI

Bordo: Bordo della fessura

Stoccaggio: Stoccaggio

Spessore: 1 mm-30 mm o come richiesto

Larghezza: 10 mm-3000 mm, a seconda dei requisiti

Ciclo personalizzato: 7-15 giorni

Colore: Colore normale Rosso, Blu, Bianco, Grigio, Ral

Superficie: Caldo immerso, galvanizzato, pre-tinto

Tipo di rivestimento: PE/SMP/HDP/PVDF

Rivestimento di zinco: 30-275G/M2

Servizi di elaborazione: Saldatura, punzonatura, taglio, decollatura

Produzione: 500 tonnellate/mese

Tempi di consegna: Come richiesto

hs: 7210490000

Pacchetto di trasporto: Export Standard Pacchetto/AS Richiesta

Specifiche: Secondo le esigenze dei clienti

Marchio: Zhengde

Origine: Cina

Codice HS: 7210490000

Capacità di alimentazione: 30000 tonnellate/mese

Garanzia del prodotto: Secondo l'ambiente d'uso

Standard del prodotto: ASTM, JIS, GB, AISI, DIN, BS

Evidenziare:

10mm-3000mm Width PPGI Steel Coil

500 Tons/Month Production PPGI Steel Coil

30000 Tons/Month Supply Ability PPGI Steel Coil

Informazioni di base

Luogo di origine: Chnia

Marca: Zhengde

Document: Zhengde Metal Product Catal...og.PDF

Termini di pagamento e spedizione

Imballaggi particolari: Impostazioni del cliente

Tempi di consegna: 10 giorni

Galleria

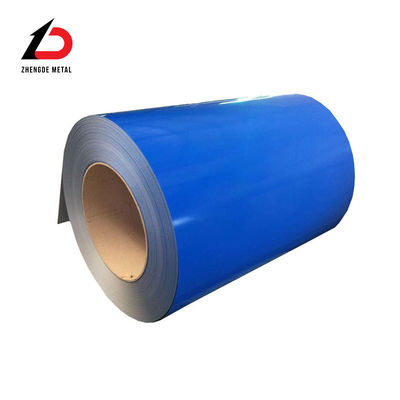

Durable PPGI Steel Coil with 10mm-3000mm Width and 500 Tons/Month Production Capacity for Wide Industrial Applications

Descrizione di prodotto

Durable PPGI Steel Coil - Pre-Painted Galvanized Steel for Industrial and Construction Use

Standard Colors: Red, Blue, White, Grey, RAL Color Factory Supply

PPGI (Pre-Painted Galvanized Iron) is pre-coated steel, also known as coil coated steel or color coated steel, with a hot dip zinc coated steel substrate.

Product Specifications

Category	Standard	Value
Executive standard	National standard	GB/T12754-2019
American Standard/European Standard		ASTM A792M
Cold rolled substrate	Width specification	1200mm
Cold rolled substrate thickness	Including metallized layer	≥0.41mm
Thickness after painting	Label thickness	≥0.46mm (≥0.45mm)
Size deviation	Width tolerance	Upper deviation +4mm, Lower deviation 0
Thickness tolerance		Upper deviation +0.05mm, Lower deviation 0
Yield Strength		>300MPA
Tensile strength		270-500MPA
Elongation after break		More than 20%
Steel coil inner diameter		Standard: 508mm (except for other agreements)

Metal Coating Specifications

Alloy composition: AlZnMg or galvanized AlMg
Total Weight of Plating Both Sides (Outside/Inside): 150g/ (75/75 or 85/65)
Neutral salt spray test: ≥2500 hours surface (without passivation), no red rust
Wound surface (end surface) salt spray test: ≥1200 hours, no red rust

PPGI Paint Specifications

PE coating structure standard (μm): Outside ≥25, Inside ≥7
Pencil hardness: Not less than HB
Specular Gloss of Topcoat: ≥40 degrees
T bend value: 2T
Impact energy: Not less than 9J
Neutral salt spray test: ≥1500h without bubbles
UVB-313: ≥700h

PPGI Use Environment

Humidity: 20% to 90%
Temperature: Min -45°C, Max 43°C
Unit ammonia: <30ppm
Unit carbon dioxide: <7000ppm
Unit oxygen: 21%
Unit hydrogen sulfide: <5ppm

Our Advantages

Complete Range

We offer different types of color steel coils for various PPGI applications, including home appliances, optical materials, decorative materials, building materials, and packaging. The production process for home appliance-grade color steel coils is particularly refined.

Good Performance

Our color coated steel plates combine organic polymers with steel substrates, offering excellent anti-corrosion and decorative properties along with superior formability and processing characteristics.

5S Management

Before production, we implement strict 5S management protocols to ensure clean working environments, proper equipment maintenance, and correct material handling, guaranteeing product quality and worker safety.

Strict Quality Control

We meticulously inspect for all potential defects including surface imperfections, edge quality, coating uniformity, dimensional accuracy, and physical properties.

Applications

PPGI Steel Coil is widely used in construction, home appliances, automotive, and agricultural industries. Common applications include roofing, wall cladding, cold storage facilities, appliance exteriors, automotive body panels, and corrosion-resistant industrial equipment.
